Optimizing NBR Latex Processing with Aquacure NBR40 (Active Zinc Oxide Dispersion)

Nitrile Butadiene Rubber (NBR) latex is widely recognized across industrial and medical sectors for its outstanding oil resistance, mechanical durability, and chemical resilience. However, translating the raw potential of NBR latex into high-performing finished products; such as oil-resistant industrial gloves, medical gloves, and specialty dipped goods, depends entirely on compounding precision and vulcanization kinetics. Among the primary additives required for sulfur-based curing, zinc oxide serves as the essential activator. Standard zinc oxide, however, has certain limitations and health hazards. To overcome these limitations, modern latex compounders rely on Aquacure NBR40 Dispersion, a premium, active zinc oxide dispersion engineered specifically for high-efficiency NBR latex compounding systems. Manufactured by Aquaspersions and distributed through IR Tubes, Aquacure NBR40 provides an optimized active zinc oxide delivery system that elevates cure consistency, drastically reduces required dosage, eliminates airborne dust, and enhances manufacturing output.

What is Aquacure NBR40 Dispersion?

Aquacure NBR40 Dispersion is a pre-dispersed, liquid-form active zinc oxide activator optimized for latex compounding. Unlike standard zinc oxide that requires intense shear and surfactants to disperse in aqueous systems, Aquacure NBR40 delivers ultra-fine active zinc oxide particles pre-suspended in a stable aqueous medium. Because of its fine particle size distribution (D95N < 5.00 µm), Aquacure NBR40 provides significantly higher specific surface area and chemical reactivity than standard zinc oxide grades. Consequently, compounders achieve superior cross-linking activation at a substantially lower dry loading level—typically between 0.25 to 1.50 phr (parts per hundred dry rubber)—compared to standard powders.

Key Technical Specifications

Parameter	Specification / Typical Value
Active Component	Active Zinc Oxide (ZnO) Dispersion
Total Solids Content	44.00%
Viscosity (RV, sp4 @ 20 rpm)	1000 cps
pH Value	10.30
Specific Gravity	1.50 g/cm³
Particle Size (D95N)	< 5.00 µm
Recommended Dosage	0.25 – 1.50 phr (dry/dry basis)

Why Promote Aquacure NBR40 for NBR Latex Manufacturing?

The choice of activator in NBR latex dipping directly dictates production throughput, reject rates, and physical properties of the vulcanized film. Aquacure NBR40 was formulated to solve these compounding challenges across four key dimensions:

1. High Reactivity & Lower Required Dosage

In sulfur vulcanization, zinc oxide reacts with accelerators to form zinc-accelerator complexes that accelerate sulfur cross-linking. Because Aquacure NBR40 features an active, sub-5-micron particle morphology (D95N < 5.00 µm), a much higher percentage of zinc atoms are available at the particle surface for reaction. This increased surface activity allows compounders to reduce overall zinc oxide loading down to 0.25 – 1.50 phr without sacrificing state of cure, tensile strength, or oil resistance.

2. Uniformity and Batch Consistency

Powder agglomeration in latex dipping tanks leads to local cure variations, pinholes, structural micro-defects, and inconsistent tensile performance. Aquacure NBR40 integrates homogeneously throughout NBR latex formulations, guaranteeing uniform cross-link density across complex dipping molds and continuous production runs.

3. Workplace Safety and Dust Elimination

As a ready-to-use liquid dispersion, Aquacure NBR40 eliminates airborne dust entirely, fostering a cleaner, safer, and compliant industrial workplace environment.

4. Reduced Mixing Time and Enhanced Productivity

Simply dosing Aquacure NBR40 into the compounding vessel under gentle agitation ensures rapid incorporation, shortening preparation cycles and increasing overall plant throughput.

Equivalent performance with HALF the zinc oxide loading.

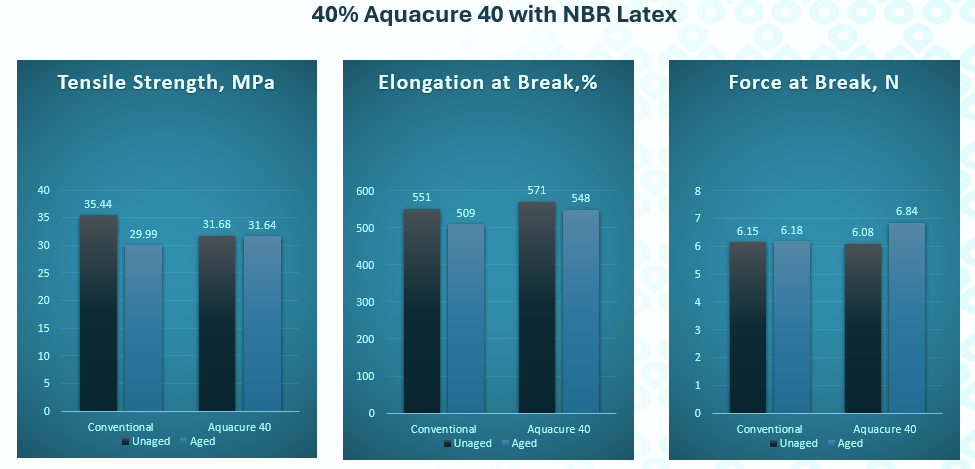

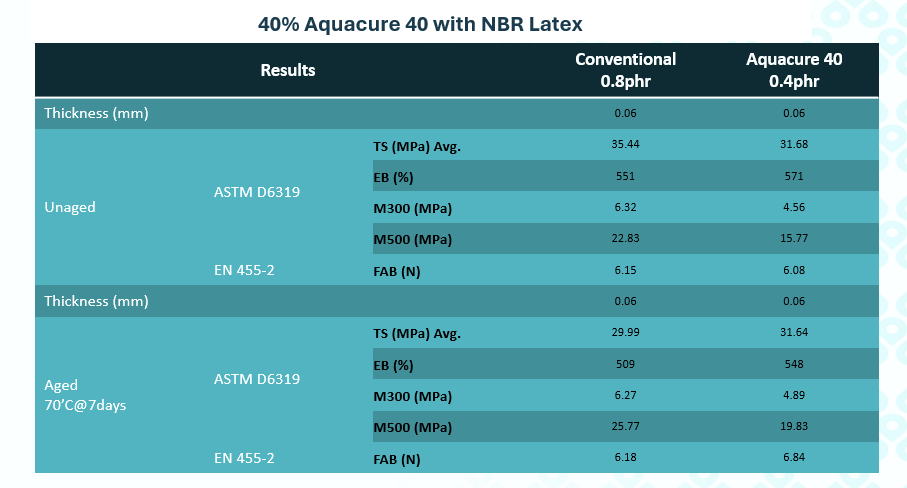

As shown in Table 1 and Figures 1-3, Aquacure NBR40 delivers mechanical properties comparable to conventional active zinc oxide dispersions while reducing the dosage by 50% (0.4 phr vs. 0.8 phr). Both unaged and accelerated ageing results demonstrate that key performance parameters, including tensile strength, elongation at break, and force at break are maintained, highlighting the efficiency of Aquacure NBR40 in NBR latex formulations. Thus replacing conventional zinc oxide dispersions with Aquacure NBR40 enables manufacturers to reduce active zinc oxide loading by 50% without compromising the critical mechanical properties The comparable performance before and after accelerated ageing demonstrates an effective balance between processing efficiency and product performance.

Best Practices for Application and Handling

To maximize the performance of Aquacure NBR40 Dispersion in NBR latex dipping operations, compounders should follow these guidelines:

• Dosage Adjustment:Calibrate addition rates based on desired modulus, film thickness, and oil resistance requirements, staying within the recommended 0.25 – 1.50 phr range.
• Mixing Procedure:Add Aquacure NBR40 directly to the latex compound during the primary blending phase. Periodic, slow-speed mechanical agitation is recommended to maintain optimal homogeneity.
• Storage Conditions:Store in tightly sealed HDPE containers in cool, dry conditions away from direct sunlight and freezing temperatures.

Conclusion

For NBR latex product manufacturers seeking higher yield, improved oil resistance, tighter quality control, and safer plant operation, upgrading from conventional dispersions to active dispersions is a decisive step forward. Aquacure NBR40 Dispersion provides the precise particle engineering, chemical stability, and lower dosage requirements needed to optimize modern NBR latex dipping operations. Explore the full range of specialty latex additives available through the IR Tubes product portfolio to elevate your compounding performance today.
